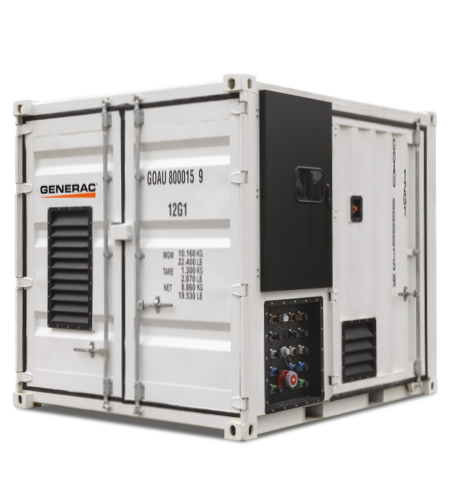

MBE Ultra 312/436 LFP – Containerized solution
MBE Ultra 312/436 LFP is a containerized Battery Energy Storage System that is noise emission and maintenance-free. The energy that is stored within the internal battery is converted, electronically, into AC power. Once all the energy has been used up, the unit can be re-charged by one of several means; connecting to a mains power supply, from a conventional generator or, to be truly green, you can connect solar panels. You can use the unit while it is being charged.
FEATURES:
- LFP lithium-ions battery
- Containerized outdoor mobile system including inverter, air conditioning and fire protection equipment
- Battery inverter and energy management system (EMS)
- Quick & easy installation
- Separate battery and inverter areas for efficient temperature management monitoring
- Cutting edge control and operator interface with 12″ display
- High accessibility for user-friendly maintenance
MBE Ultra 312/436 LFP
LFP battery
| Output Specifications | |
| Nominal output power (continuous) | 312.5 kVA |
| Peak output power (5s) | 344 kW |
| Rated voltage (single phase) | 400 V |
| Frequency | 50 Hz |
| Phase(s) | 3 |
| Nominal energy capacity | 436.1 kWh |
| Battery specifications | |
| Battery type | Li-ion LFP |
| Depth of Discharge (DoD) | 90% |
| Battery design life | 6000 cycles |
| Usable energy @ DoD / AC side | 372.9 kWh |
| Overall dimensions | |
| Dimensions (L x W x H) | 2962 x 2435 x 2590 mm |
| Weight | 10500 kg |
